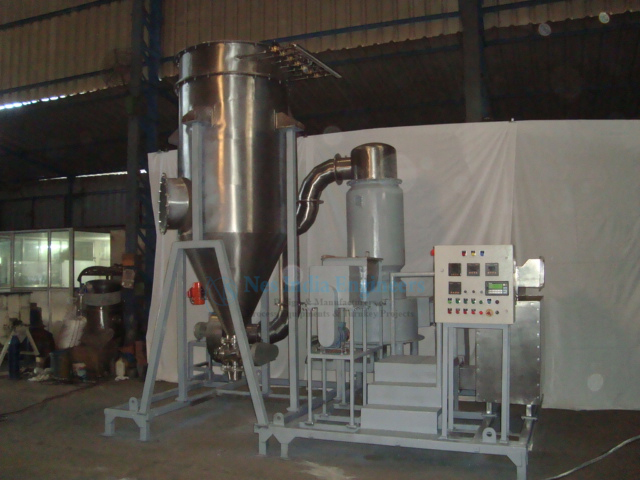

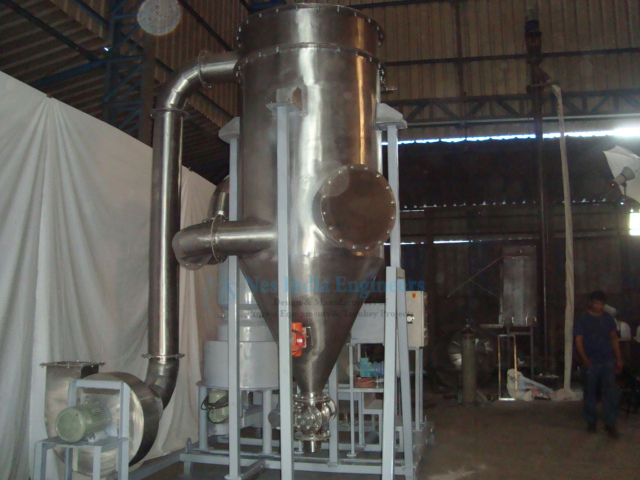

A Spin Flash Dryer is a high-performance industrial drying system used to dry pastes, slurries, and cakes into fine powders in a continuous process. This system is highly efficient, making it ideal for materials that are heat-sensitive or difficult to handle using conventional drying methods.
Key Features:
- Rapid Drying: Achieves drying within seconds by combining hot air and high-speed mechanical agitation.
- Compact Design: Space-saving construction with integrated feed, drying, and separation systems.
- Energy Efficient: Optimized for low energy consumption per kg of dried material.
- Consistent Product Quality: Produces free-flowing, fine, and uniform powders.
- Robust Construction: Available in SS304, SS316, or alloy steel based on process requirements.
Technical Specifications:
- Capacity: Customizable (from 10 kg/hr to several tons/hr)
- Moisture Removal Efficiency: Up to 95%
- Drying Temperature: 100°C to 250°C (adjustable based on product)
- Material of Construction: SS304 / SS316 / Hastelloy (as per process needs)
- Control System: Manual / PLC-based automation
- Feeding System: Screw feeder or pump, depending on feed type.
Applications:
- Pharmaceuticals (active ingredients, salts)
- Chemicals (dyes, pigments, catalysts)
- Food Products (starch, spices, dairy ingredients)
- Minerals and ceramics
- Agrochemicals (pesticides, herbicides)
-
